Philco 3 Ton Variable Speed Air Handler B4VM-X36KB

IMPORTANT NOTICE!

HVAC equipment involves highly technical trade skills for proper installation.  We HIGHLY RECOMMEND you hire a licensed and insured heating and air conditioning contractor to install the equipment listed on these pages.  In addition to a proper installation, the registering of the products by a licensed contractor will ensure that your equipment warranty is valid. Please visit us often for more quality air conditioning parts, equipment, and accessories.

B4VM-X36KB

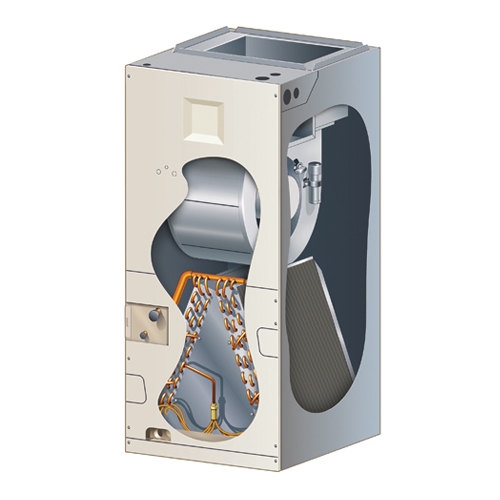

The Philco B4VM-X Series of air handlers, when combined with a matching Philco heat pump or air conditioner, offer a full line of quality, split system heating and cooling equipment.

Features and Benefits

• ECM Variable Speed Motor:  Programmed to provide 12 field-selectable cooling airflows and 4 heating airflows to match any application.
• Quiet Blower Operation:  Extra quiet and smooth blower on and off cycles.
• Constant Airflow:  Motor automatically adjusts to different static loads.
• Selectable Delay Profiles:  Increases efficiency and comfort.
• Reduced Air Stratification:  This results in improved air quality by optimizing humidity removal and filtration capabilities.
• Multi-poised:  Can be used in horizontal, upflow, downflow, and vertical applications.
• Built-in Filter Rack:  Makes the air handler easy to service.
• Plug-in Heater Kits:  Available in 5kw - 30 kw (Not for use in 115 Volt units)
• Circuit Board:  Incorporating blower time delay relay, low voltage terminal strip, and heat-strip sequencing.
• Breaker Accessibility:  Breaker accessible from front of unit when heater is applied.
• Plastic Drain Pan:  Provides corrosion resistance.
• Durable Cabinet:  Galvanized steel with a polyurethane finish.  The 950 hour salt spray finish resists corrosion 50% better than comparable units.
• Designed to Meet the Requirements 610.2.A.2:  Meets Florida building code requirements for air leakage.
• Thermal Expansion Valve:  Factory installed externally equalized thermal expansion valve provides prescise refrigerant control under varying load conditions.
• Cabinet Insulation:  1 inch thick insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications.

Click here to --->Select A Heat Strip<---

Uncrated Dimensions In Inches 19 3/4 W x 22 D x 49 1/2 H

Uncrated Weight 110 Lbs.

NOTE:  THIS ITEM SHIPS COMMON CARRIER ONLY - NO UPS
